Spydercrane URW376
Spydercrane

URW 376

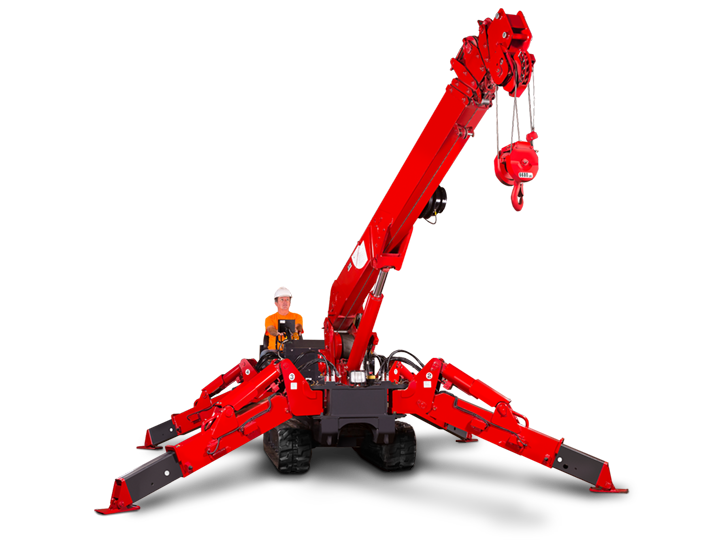

From heavy landscaping to commercial and residential construction, the URW376 mini crawler crane is perfect for jobs that need a little more muscle.
  • Maximum Lifting Capacity 6,475 lbs. @ 8.2 ft.
  • Working Radius 1.7 ft. to 47.4 ft.
  • Fits Through Double Doors
  • Dimensions (W x H x L) 4.3 x 5.9 x 14.1 ft.
  • Weight 8,488 lbs.
  • Engine Options Diesel and diesel/electric

SPYDERCRANE URW 376

Although it has a similar maximum load as its little brother, the URW295, the Spydercrane URW376 mini crawler crane can raise its maximum load of 6,475 lbs. up to 8.2 ft., nearly twice what the URW295 can do! Its tip height is 51 ft., yet this mighty machine folds to 4.3 ft. wide and fits easily through a set of double doors. Powered by a 24.2 HP motor and able to turn out 1.9 MPH running speeds, the URW376 is faster, as well as more powerful. Like all Spydercranes, this model offers 360 degree continuous rotation and can be operated from its work platform, or by remote control, providing maximum flexibility for operators. Another Spydercrane standard, infinitely variable controls, allow for multiple functions to take place simultaneously. All of this power and versatility is available in a machine that is guaranteed to operate at 70 decibels or less within a 24 ft. radius. That's about as loud as a standard vacuum cleaner! Mylar tracks, available for all of our models, avoid leaving marks on indoor surfaces.

Compact Design

What separates Spydercranes from other cranes is the extra production achieved due to its compact & flexible design. The URW 376 fits through double doors and can scale where other cranes are not able to go. This allows for efficient work in confined, restricted working spaces. Spydercrane provides excellent lifting capacity and experienced operators can take it from a travel position to a fully expanded position in approximately 5 minutes.

Versatile Outrigger Configurations

The URW 376's versatile outrigger configurations permit each outrigger leg to be adjusted independently so the crane can operate on uneven surfaces. Setting up around obstacles becomes easier with multiple-leg extension and angle positions.

Standard Radio Remote Control

To increase operator flexibility, the URW 376 includes a standard radio remote control. It allows for the best visibility, precision load placement and safest proximity. The Spydercrane radio remote includes automatic throttle activation, emergency shut-down, multiple speed selections and a pressure sensitive trigger for speed control.

Excellent Working Radius

It is nearly impossible to find a carry-deck crane with a wider working radius than the Spydercrane. With a 360-degree continuous-rotation boom for safe lifting in all directions - even when the outriggers are set in the maximum position - the Spydercrane URW 376 allows operators to lift loads closer to the center line of rotation.

Turn-Over-Protection System*

The URW 376 comes equipped with the Spydercrane Turn-Over-Protection System. This industry-leading safety feature continuously monitors ground-bearing pressure at each outrigger regardless of configuration. When it detects unsafe crane functions, it automatically sounds an alarm and restricts movement. This feature helps keep tipping and potential injuries to a minimum risk.

*Crane operators need to be aware of the load weight and lifting limitations and shouldn't rely on the crane's safety functions to prevent accidents.

Anti-Two Block System

To help eliminate overhoisting damage at the boom tip, the Spydercrane's Anti-Two Block System warns operators when the hook reaches maximum safe height. A standard feature on the URW 376, the Anti-Two Block System's lock-out feature stops further forward travel to minimize chances for injury or overall damage.

Onboard Self Diagnostic System

Another industry-leading standard feature by Spydercrane, the Onboard Self Diagnostic System indicates the URW 376's operating status. The feature reduces downtime by proactively performing thorough and complete service diagnostics.

Hexagonal Boom Design

Increased rigidity is a must in Spydercranes. On the URW 376, the Spydercrane's Hexagonal Boom Design significantly reduces sway, thereby increasing accuracy and safety in the mini crane's operations.

Additional Safety Features

If the industry-leading features mentioned above weren't enough to entice you, the URW 376 has a slew of additional safety features to keep productive and secure for years to come. These features include hydraulic circuit pressure relief valve and bubble-style level for outrigger leveling, hook safety latch, over-winding prevention device and alarm, working area limitation, automatic hook stow system, minimum wire rope automatic stop and more...

Powr-Grip® Glass Handler

All Spydercranes work with several models of Powr-Grip vacuum lifting systems, lending strength, stability and control to the movement and installation of even the largest of glass panels. Take advantage of the the URW376's longer boom to raise glass to new heights!

More Info

Searcher Hook

Perfect for bringing heavy lifting power into places a boom just won't fit, our searcher hooks offer tilt angles of 0, 20, 40, and 60 degrees to give you precision in tight spaces. The URW376 Searcher Hook is 31 in. long and offers a lifting capacity of 1100 lbs.

Single Person Work Basket

Our single person work baskets provide a secure 2 ft. square platform of workspace able to support up to 300 lbs. Use the remote control to lift yourself nearly 50 ft. in the air with the URW376!

Auxiliary Winch Kit

Attaching securely to the boom tip, our Auxiliary Winch Kit lets your Spydercrane lift 2000 lb. loads using 330 ft. of wire rope and the power to move materials at 90 fpm. For maximum versatility, the Auxiliary Winch Kit works with the Spydercrane's remote control. An overhaul ball is included, along with a hook and safety latch. Use along with the URW376 for precision maneuvering, both indoors and out!

Single Line Swivel Mini Ball

Keep your cable under control with our Single Line Swivel Mini Ball, just one more way Spydercrane mini crawler cranes keep you safe and in control. The Swivel Mini Ball and the URW376 won't let your materials get away from you!
