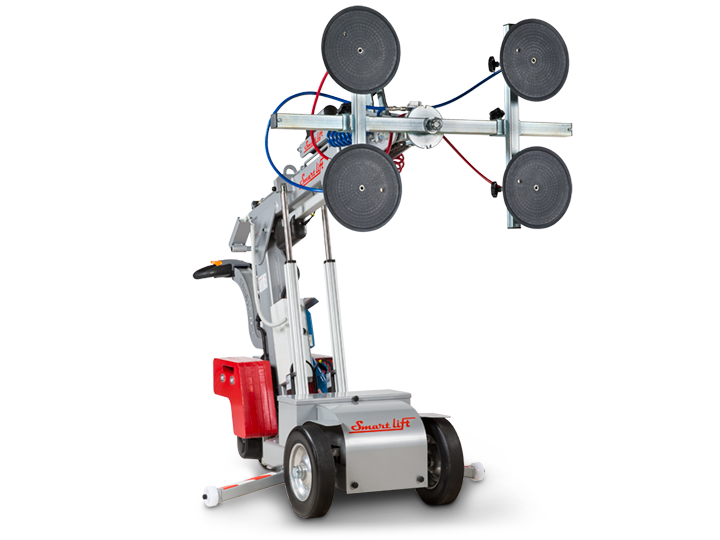

Specifically designed for indoor use, the SmartLift® 380 Indoor is compact and versatile. With a lifting capacity of 837 lbs. and side shift capabilities, this SmartLift® easily manipulates medium size pieces of glass into a precise position.
Hoist max weight: 837 lbs.
Tip from horizontal: 45 degrees back. 105 degrees forward.
Dimensions (W x H x L): 2.1 ft. x 4.4 ft. x 5.9 ft.
The SmartLift® 380 Indoor focuses primarily on medium-sized pieces of glass. With its stepless movement generated by a 700-watt, rear-wheel drive engine, the 380 Indoor can easily transport glass panes over various surface types without shaking or jerking. The 380 Indoor's vast selection of suction cups along with its two vacuum circuits and two pumps keep those pieces elevated at multiple angles for extended periods of time. Its stability makes it ideal for window fitting and installation jobs. Under normal working conditions, the 380 Indoor's battery can operate up to 30 hours on a single charge and can recharge in just 8 hours.
Those looking to reduce their carbon footprint will be happy to know that The SmartLift® 380 Indoor is a battery-operated device. Running up to 30 hours on a charge, and requiring only 8 hours to recharge, the battery will save on trips to the gas pump.
12" suction pads come standard with the 380 Indoor SmartLift®. Additional size suction pads are available, ranging from 5" to 16" as well as specialty suction pads for fire doors.
Puncture Proof Tires
Wide wheels. Smooth rides. The puncture proof tires on the 380 Indoor are oversized to stabilize loads and improve the smoothness of the ride. Each set of 4 tires are filled with foam, improving stability on job sites.
The 380 Indoor is self-driven by remote control and can be shifted sideways up to 3.9" for precision adjustment during window installation.
The aluminum diamond plate indoor ramp measures in at a little over 6'6" long and 2'1" wide. Its design makes it easy to load and unload the 380 Indoor for inside jobs.
Windows, glass, and fire doors are not the only materials the 380 Indoor lifting machines can hoist. Attach the lifting hooks and you'll be able to lift and transport a wide range of materials.
Pallet Fork Type 300 or 500
SmartLift® lifting machines have the capacity to do more than lift glass-related materials. SmartLift®'s pallet fork types 300 and 500 are easily-interchangeable accessories. The 300 will lift loads up to 660 lbs. and the 500 will lift loads up to 1,100 lbs.
Ball Joint for Suction Pad
Not all glass panes are flat. For those curved or elliptical panes, SmartLift® created ball joints for suction pads. The ability of these accessories will depend on the size and shapes of the glass. Please consult with us before using them for the first time on a given size / shape / weight pane.
Flexolinks are rubber connectors specifically designed to handle curved pieces of glass. Two types of flexolinks are available, one that can support a load up to 279 lbs. and one that can support up to 1,322 lbs.
Suction Pad Extender
SmartLift® lifting machines have suction pad extenders available for the unique jobs that need those extra couple inches. There are a variety of suction pad extenders available, providing flexibility for many different sizes and types of projects
Suction Pads for Fire Doors
The 380 Indoor is more than capable of picking up large items such as fire doors, but it requires special equipment. Luckily, SmartLift® created suctions pads specifically designed to lift fire doors. Ask us today about these helpful pads.
In some cases, safely transporting a piece of glass or material with its weight properly distributed, requires the positions of the suction pads to be changed. With the Flexi Beam, you will be able to rotate both pairs of suction pads, customizing the alignment to fit your project's need.
Need additional suction pads? With the distributor block, you will be able to add additional suction pads, increasing the stability and strength of your hold.
