Spydercrane URW295 - Controls
Spydercrane

URW 295

Our smallest Spydercrane model brings big strength and speed to places you didn't think a crane could go!
  • Maximum Lifting Capacity 6,450 lbs. @ 4.6 ft.
  • Working Radius 1.5 ft. to 28 ft.
  • Fits Through a Standard Doorway
  • Dimensions (W x H x L) 2.0 x 4.6 x 9.0 ft.
  • Weight 4,100 lbs.
  • Engine Options Gas, gas/electric, gas/propane, diesel, and diesel/electric

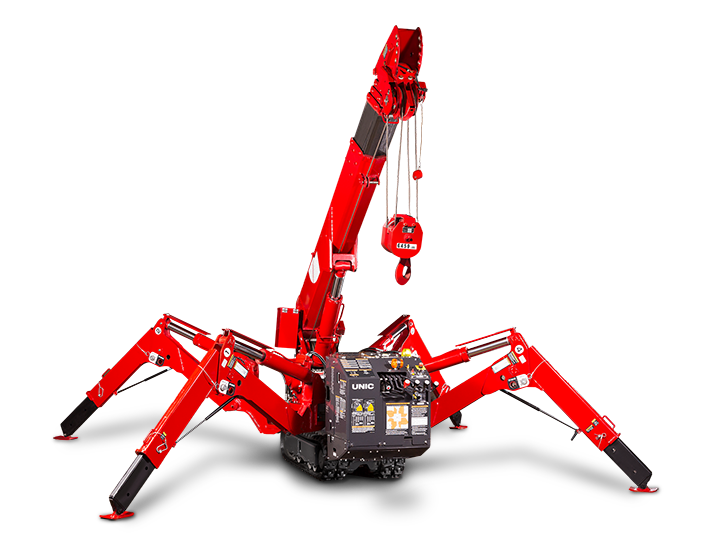

SPYDERCRANE URW 295

The Sypdercrane URW295 mini crawler crane is the perfect solution for tight spots. Folding to 2 ft. wide, the URW295 fits easily through a standard doorway, yet it's capable of lifting 6,450 lbs. at 4.6 ft. and has a tip height of 29 ft. Its 1.4 MPH running speeds, 2-speed running motor, and variable piston pump get the job done much faster than larger machines. Like all Spydercranes, the URW295 offers 360 degree continuous rotation and can be operated from its work platform, or by remote control, providing maximum flexibility for operators. Another Spydercrane standard, infinitely variable controls, allow for multiple functions to take place simultaneously. All of this power and versatility is available in a machine that is guaranteed to operate at 70 decibels or less within a 24 ft. radius. That's about as loud as a standard vacuum cleaner! Mylar tracks, available for all of our models of Spydercrane, are designed to avoid leaving marks on indoor surfaces.

Compact Design

The Spydercrane URW 295 separates itself from other mini cranes with its productivity achieved through compact and flexible design. The URW 295 can fit through doorways and elevate where other cranes are unable to navigate — allowing for efficient work in restricted and confined working spaces. Experienced operators can take the URW 295 from travel position to the fully expanded position in about five minutes, perfectly complimenting its lifting capacity of 6,450 lbs. @ 4.6 ft..

Versatile Outrigger Configurations

The unique design of the Spydercrane URW 295 permits each outrigger leg to be adjusted independently, allowing the crane to be leveled on uneven surfaces. The URW 295 also comes with both multiple-leg extension positions and multiple-leg angle positions, making it easy to set up around obstacles.

Standard Radio Remote Control

To compliment its infinitely variable controls that allow multiple functions simultaneously, the Spydercrane URW 295 comes equipped standard with a fully functional radio remote control. The radio remote control increases operator flexibility, allowing for the best visibility, safest proximity and precise load placement. The URW 295's radio remote control also offers multiple speed selections, automatic throttle activation, emergency shut-down and a pressure sensitive trigger for speed control.

Excellent Working Radius

Unlike carry-deck cranes, the Spydercrane URW 295's spider-leg design allows operators to lift loads closer to the center line of rotation — adding greater versatility. The URW 295 has a 360-degree continuous-rotation boom to provide safe lifting in all directions when the outriggers are set in the maximum position.

Turn-Over-Protection System*

The Spydercrane URW 295's patented Turn-Over-Protection system is one of the most advanced safety features found in the crane industry today. The protection system continuously monitors ground-bearing pressure at each outrigger regardless of configuration, and automatically sounds an alarm which restricts unsafe crane functions. These features help to reduce the chance of injuries and crane tipping.

*Crane operators need to be aware of the load weight and lifting limitations and shouldn't rely on the crane's safety functions to prevent accidents.

Anti-Two Block System

The industry-leading Anti-Two Block System on the Spydercrane URW 295 eliminates overhoisting damage at the boom tip by warning operators when the hook reaches maximum safe height. The system's function lock-out feature stops further forward travel to reduce the chance of damage or injury.

Onboard Self Diagnostic System

To continually indicate the operating status and help reduce downtime by providing complete service diagnostics, the Spydercrane URW 295 comes equipped with an Onboard Self-Diagnostic System. To further its ease of use, the URW 295's current operation mode is conveniently located on the side of the control box.

Hexagonal Boom Design

The Spydercrane URW 295's hexagonal-shaped boom provides increased rigidity, greatly reduces sway and increases accuracy and safety in crane operations.

Additional Safety Features

The Spydercrane URW 295 also offers the following industry-leading safety features: automatic hook stow system, hook safety latch, over-winding prevention device and alarm, working area limitation, minimum wire rope automatic stop, hydraulic circuit pressure relief valve and bubble-style level for outrigger leveling.

Powr-Grip® Glass Handler

All Spydercranes work with several models of Powr-Grip vacuum lifting systems, lending strength, stability and control to the movement and installation of even the largest of glass panels. Whether you're working on top of a high-rise, out in the open, or in between floors, the URW295 can help you put glass panels in their place!

More Info

Searcher Hook

Perfect for bringing heavy lifting power into places a boom just won't fit, our searcher hooks offer tilt angles of 0, 20, 40, and 60 degrees to give you precision in tight spaces. The URW295 Searcher Hook is 19 in. long and offers a lifting capacity of 660 lbs.

Single Person Work Basket

Our single person work baskets provide a secure 2 ft. square platform of workspace able to support up to 300 lbs. Attaching securely to the boom of the URW295, these baskets are perfect for getting workers into places where scissor lifts can't go.

Auxiliary Winch Kit

Attaching securely to the boom tip, our Auxiliary Winch Kit lets your Spydercrane lift 2000 lb. loads using 330 ft. of wire rope and the power to move materials at 90 fpm. For maximum versatility, the Auxiliary Winch Kit works with the Spydercrane's remote control. An overhaul ball is included, along with a hook and safety latch. Use along with the versatile URW295 to raise loads or lower workers safely into place.

Single Line Swivel Mini Ball

Keep your cable under control with our Single Line Swivel Mini Ball, just one more way Spydercrane mini crawler cranes keep you safe and in control. The Swivel Mini Ball brings precision and power to any project you do with the URW295.
